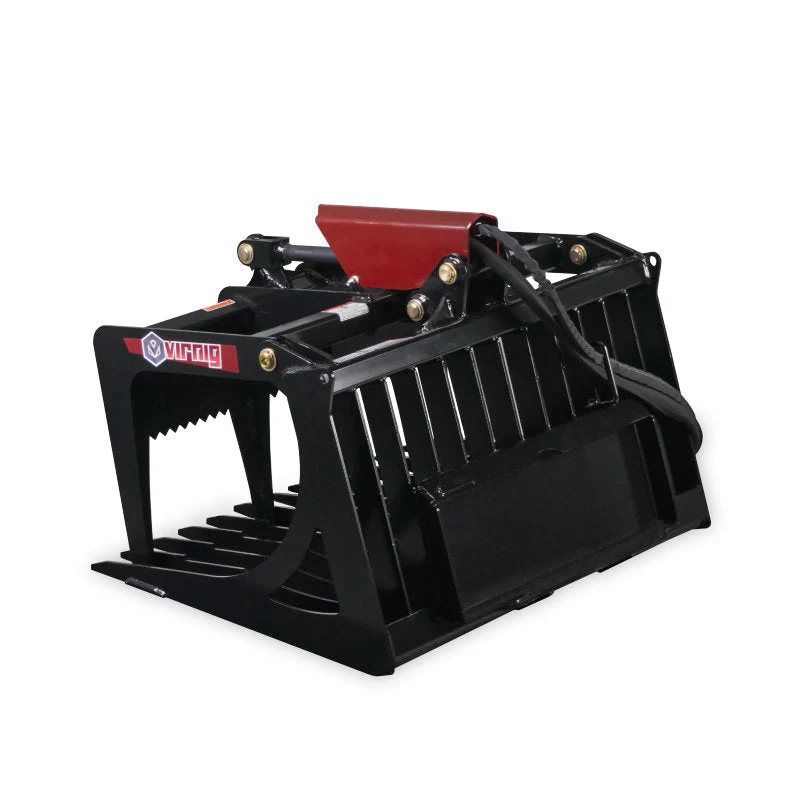

Virnig v20 Skeleton Rock Grapple for Mini Skid Steer
The Virnig v20 Skeleton Rock Grapple for Mini Skid Steer is a purpose-built attachment that makes rock handling safer and more efficient for landscapers, contractors, and rental fleets using compact loaders. With a built-in grapple and rugged one-piece tines, it provides a secure grip on rocks and uneven loads while fitting 36", 42", or 48" mini skid steer configurations.
- Available widths: 36", 42", and 48" to match the CSRG36/CSRG42/CSRG48 configurations for a precise, snug fit on your mini skid steer
- One-piece tines: Every tine is forged from a single piece of steel for maximum rigidity and dependable rock penetration
- Grapple jaw opening: 30.3" jaw opening to accommodate sizable rock chunks and uneven loads
- Rock dam and notch: Built-in rock dam plus a notch near tine tips to hold rocks securely during transport
- Premium components: NitroSteel cylinder rods and TEFLON-coated bushings on the hinge reduce wear and provide smoother operation
- Cylinder guard: Standard guard protects hydraulic cylinders in harsh work environments
- Robust dimensions: Overall widths 36/42/48 in; height 26.6" (overall) / 24.1" (bucket); depth 31.9"
- Tines and spacing: 13/15/17 tines with 2.9" spacing; tine thickness 0.25"
- Hydraulic specs: Cylinder bore 2.0" and stroke 6.0" for strong clamping force
- Weight and loader compatibility: Weight ranges from 3002 to 3452 lb depending on width; recommended loader capacity greater than 500 lb
The V20 Skeleton Rock Grapple is designed to help you tackle rocky jobs with confidence. The secure grip, rigid one-piece tines, and notch design reduce material loss and regrouping time, so you can move heavy stones, rubble, and debris more efficiently. Premium NitroSteel rods and TEFLON-coated bushings extend service life in demanding sites, while the cylinder guard protects critical components from damage. With multiple widths to match your mini skid steer and a generous jaw opening, this attachment is ideal for rock relocation, drainage trenching, terrace creation, and landscaping projects where precision and durability matter.
| MODEL | CSRG36 | CSRG42 | CSRG48 |
| Overall Width (Inches) | 36.0 | 42.0 | 48.0 |
| Height: Overall / Bucket (Inches) | 26.6 / 24.1 | ||
| Overall Depth (Inches) | 31.9 | ||
| Number of Tines (With Sides) | 13 | 15 | 17 |
| Space Between Tines (Inches) | 2.9 | ||
| Tine Thickness (Inches) | .25¹ | ||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 / 1.0 | ||
| Grapple Jaw Opening (Inches) | 30.3 | ||
| Approximate Weight (Pounds) | 3002 | 3202 | 3452 |
| Recommended Loader Capacity | Greater than 500 pounds | Greater than 500 pounds |
Greater than 500 pounds
|
