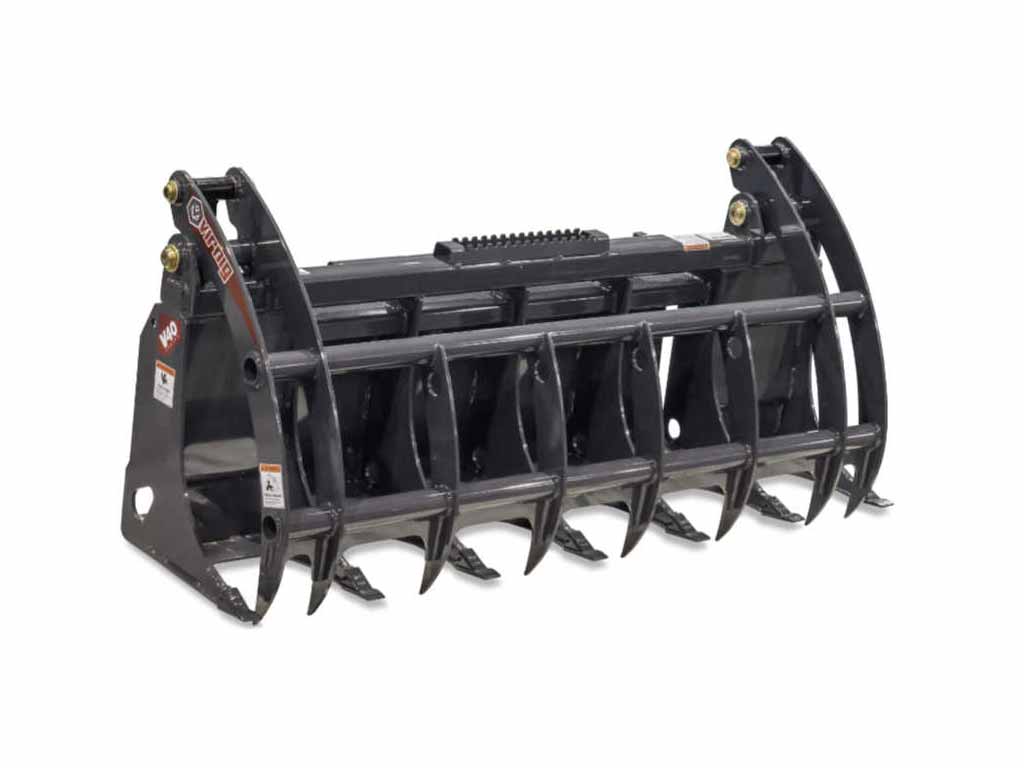

Virnig V40 Root Rake Grapple for Skid Steer

The Virnig V40 Root Rake Grapple is a rugged skid-steer attachment designed for clearing brush, digging, raking, piling, and loading debris. Built for medium to large frame skid steers, it combines a powerful grapple with a wide root rake to tackle demanding jobs efficiently.

• Model Variants and Widths: Available in URG60-UT (61.5" overall width), URG66-UT (67.5"), and URG72-UT (73.5"), giving you precise sizing to match loader capacity and job requirements.
• Grapple Jaw Opening: 44.1" opening to haul large amounts of brush and debris in a single pass.
• Heavy-Duty Construction: 3/8" Grade 50 steel for the jaw and rake tines with replaceable cast teeth for extended service life.
• Cylinder Technology: Two-cylinder design with NitroSteel® cylinder rods and Teflon®-coated bushings on all pivots for smoother operation and durability.
• Forward and Reverse Operation: Unique design that efficiently drags loose material into piles, speeding site cleanup and reducing handling time.
• Mounting and Hardware Included: Comes with universal skid steer mounting hoses, couplers, and fittings for quick, straightforward installation.
• V40 Series Durability: Part of Virnig’s V40 line, purpose-built for medium and large frame skid steers, often delivering greater payload handling than competing heavy-duty attachments.
• Compatibility Note: Possible clearance issue with URG-UT on Takeuchi TL12 and John Deere 330G, 331G, 332G, 333G models.
• Weight and Loader Capacity: Approximate weight ranges from 625 to 695 pounds depending on model; recommended loader capacity less than 2200 pounds.
• Teeth and Spacing: Six to seven teeth depending on model; space between teeth 10.2"–11.4"; space between tines and grapple jaws 5.0"–12.4\"; tine thickness 0.375".
• Overall Dimensions: Heights and depths vary by model, with overall width corresponding to URG60-UT (61.5"), URG66-UT (67.5"), and URG72-UT (73.5").

With the Virnig V40 Root Rake Grapple, you gain a purpose-built solution for fast debris removal, brush clearing, and material loading. The combination of a wide jaw opening, replaceable teeth, and durable components means fewer tool changes and less downtime on busy sites. The included mounting kit simplifies installation, while the robust Grade 50 steel construction provides confidence during heavy-duty tasks. Whether you’re tidying a job site after storms, clearing a fence line, or loading material for disposal, this attachment delivers steady performance and long-term value.

MODEL	URG60-UT	URG66-UT	URG72-UT
Overall Width (Inches)	61.5	67.5	73.5
Height: Overall / Bucket (Inches)	34.2 / 29.3
Overall Depth (Inches)	22.1
Number of Teeth	6	6	7
Space Between Teeth (Inches)	10.2	11.4	10.2
Space Between Tines / Grapple Jaws (Inches)	5.0 / 10.9	5.0 / 12.4	5.0 / 11.1
Tine Thickness (Inches)	0.375*
Cylinder Bore / Stroke (Inches)	2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches)	1.25 / 1.563
Grapple Jaw Opening (Inches)	44.1
Approximate Weight (Pounds)	625	645	695
Recommended Loader Capacity	Less than 2200 pounds
